Impossible possibilities: a super-runner’s speed limit

Gabriel K. Kiyohara

Independent researcher. São Paulo, SP, Brazil.

Email: gabriel.kiyohara (at) gmail (dot) com

Download PDF

Super heroes: their attitudes and honor codes make them heroes; their extraordinary abilities make them super. Such abilities may be believable, based on mundane training and technology but, more often than not, they surpass not only human limits, but the borders of physics as well. For example: moving faster than light, ignoring laws of mass and energy conservation, manipulating matter and energy with a thought, etc.

Many questions come to mind when thinking about supers, one in particular: what are the limits of what is physically possible? When a character receives an extraordinary power, how does it interact with an ordinary world? In this study, I’d like to invite the reader to explore the boundaries of one of the most classical archetypes: the super-runner.

INITIAL SCOPE

As I don’t want to cause indignation to any fan while talking about limitations of his or her favorite character – such as Flash (Fig. 1), Quicksilver (Fig. 2) and other famous speedsters – let’s adopt an unknown super hero, henceforth called Captain Run (any similarity with characters from any multiverse is just a coincidence), to whom I shall give increasing powers, testing how fast a super-runner can go.

Figure 1. Different versions of DC’s The Flash. Image extracted from Wikimedia Commons; artwork for the cover of Flash (vol. 2, #208; DC Comics, May 2004), art by M. Turner & P. Steigerwald.

Figure 2. Marvel’s Quicksilver. Image extracted from Wikimedia Commons; panel from Avengers (vol. 3, #38; Marvel Comics, March 2001), art by A. Davis.

Some may find it weird to talk about “super-runner” instead of using the term “speedster”. The reason is that I will limit our study to powers that are (roughly) related to running. So, I will avoid time-stopping, n-th dimension jumping, space compression and any other “physics’ law-suppressing” powers, otherwise there would be little physics left to study. That being said, from now on, I may use both terms speedster and super-runner, but Captain Run’s powers will be limited to running abilities.

Let’s start slow. What if the Captain had human speed? The top speed registered for a running human was achieved by Usain Bolt in the 100 meters race at Berlin 2009 (Fig. 3; German Athletics Federation, 2009), when he travelled from the 60m to the 80m line in 1.61 seconds. This means a speed of 12.4 m/s or 44.6 km/h.

Figure 3. Usain Bolt (second from right to left) winning the 100 m in Berlin 2009. Image extracted from Wikimedia Commons; E. van Leeuwen (2009).

This speed is comparable to that of cars in urban areas, a remarkable feat for a biped made of flesh and bone. But if our goal is to go beyond real humans, how about the limits of the animal kingdom? The fastest known land runner is the cheetah (Acinonyx jubatus) who, when pursuing their prey, can run at up to 100 km/h for short periods of time (Carwardine, 2008). That clearly served as inspiration for the Thundercat speedster Cheetara (Fig. 4).

Figure 4. Cheetara, from Thundercats. Image extracted from www.thundercatsfans.org; screen capture from the animated series.

Better, but not enough. Our hero is still stuck to biological limitations: muscle contraction rate, step mechanics, motor coordination, metabolism, fatigue, etc. Alright, it’s time to go super!

Let’s give Captain Run the following powers: (1) the ability to move body parts as fast as needed, no longer constrained by physiology; (2) reflexes and brain functions fast enough to coordinate such movements; (3) the capacity to accumulate enough energy and use it with enough potency to enable this speed; and (4) sufficient invulnerability to avoid harm from the usage of his powers within normal circumstances. Captain’s uniform is super resistant and includes special googles that repel any particles, never getting blurry.

With all that, what limits our hero? Basically, friction.

FRICTION: PUSHING AND BLOCKING

When someone stands on a horizontal surface, their body is pulled towards the planet’s center due to gravitational attraction, aka weight force. Their feet touch the ground and apply a force on it, whose reaction is applied by the ground on the feet and balances the weight force, so that the body remains static. This contact force is perpendicular to the surface, and is usually called normal force (FN).

When someone tries to run, their feet (or their footwear’s sole) perform a movement whose tendency would be to slide backward. If there is too little friction, as on an oil puddle, the runner slips. However, if the interaction between foot and ground is sufficiently strong to resist slipping, the foot will push the ground backward while the ground will push the foot forward, propelling the runner forward (Fig. 5). In this case we have what is called static friction: a property of two surfaces to resist sliding so that there is no relative movement.

Figure 5. A runner’s force diagram. Image modified from Forces in Running (http://forces-in-running.weebly.com/).

The static friction has a limit that depends on: (1) the normal force between the surfaces – that is, how much they compress each other; and (2) the nature of the touching surfaces, meaning the materials they are made of, if there are particles (dust) or fluid (oil, water) between them, and if the surfaces are smooth or rough. In general, one can use the expression:

where Ffriction is the friction force, FN is the normal force, and μ is the friction coefficient, an empirical dimensionless number found through many experiments with different materials and conditions. If the Captain’s foot tries to apply a horizontal force greater than μ∙FN onto the ground, his foot slips; therefore, μ∙FN is the maximum force he can use to impel himself forward.

The analysis gets more complicated when we consider the human step mechanics, which involves vertical displacement, the feet and legs changing position, forces changing directions at every moment, among other complications. In order to focus on the overall external physics, I will use a radical simplification, adopting average values and ignoring most of the step mechanics.

In this simplified model, the normal force will be considered constant, and a horizontal trajectory will be chosen so that there is no vertical displacement. Therefore, in general conditions, the normal force’s magnitude will be equal to the weight force (we will see later on that this can change under certain circumstances).

Also, the friction coefficient μ will be considered constant and adopted as 1, which represents boots made of tire rubber on dry asphalt from a regular street (lower values represent more slippery surfaces; higher values are found in more adherent interactions, like rubber shoes on rubber floor; for more examples, see The Engineering ToolBox, 2017). Simulating a wide range of values for a varying μ as the Captain runs would consume too much time and effort while adopting a scenario as fictional as any. If we have to pick a track, let’s stick to the basics.

With these premises, the expression for friction force says that Ffriction ≤ weight. By Newton’s second law, one may conclude that Captain Run could achieve an acceleration equal to the gravitational acceleration, about 9.8 m/s². Does this mean he can speed up at 9.8 m/s², as if he were “free falling forward” indefinitely?

Not really. And that is because we still haven’t talked about the other “friction”: the air resistance. The interaction of a moving body and the fluid it is immersed in depends on the body’s size, geometry and position, and increases with the relative speed between them, generating a force opposed to the movement. This force may be called drag, air friction or air resistance. A free falling body’s acceleration decreases as the drag increases, up to the point when drag = weight. At such a point, it is said that the body has hit its terminal velocity.

For a skydiver with open arms and legs and parachute still closed (Fig. 6; this is the closest to a person running with an erect posture that can be found in literature), the terminal velocity is of about 60 m/s or 216 km/h (Nave, 2012). This is fast for sure, but not as extraordinary as we wanted; after all, there are land vehicles which can go faster than that. So, how can we go faster if, at this point, the air resistance equals the maximum propelling force we can achieve? Let’s take a deeper look.

Figure 6. Depiction of a freefalling skydiver. Image extracted from Buzzle (www.buzzle.com).

The drag force for a turbulent flow (in short, at high relative speeds) around a body is given by the expression:

where Fdrag is the drag force; ρ is the fluid’s density; A is the reference area, which can be the total area in contact with the fluid, or the frontal area (the “shadow” the body creates in the fluid’s flow lines); Cdrag is the drag coefficient, a dimensionless number obtained by experiments (it depends on the area A considered and the body’s geometry and stance, and the fluid’s viscosity); and V is the relative speed between body and fluid.

The terminal velocity is reached when V is so high that the drag equals the propelling force, which I estimated as being equal to Captain’s weight (if he tries to impose more force, his feet will slip on the ground without speeding up), so:

Considering this equation, which powers or tricks could the Captain use to run faster? He could change his stance to reduce the drag, much like bikers leaning and even lying on their motorcycles in order to generate less drag (this may explain why some authors depict their characters running with their torso in a horizontal stance). Still, the limit wouldn’t be “super” higher.

The Captain could try some technology or obtain a new power to shrink (reducing the A∙Cdrag term) while keeping the same mass, or increase his mass while keeping his shape (with a suit made of super heavy materials, for example). However, he would then have another problem because, at some point, his weight would be concentrated in such a reduced area, that he would possibly pierce the floor and leave a trail of destruction in his path.

By the way, collateral damage would be an issue if Captain Run were to get close to another famous limit: the sound barrier (Fig. 7). The sound travels at different speeds depending on characteristics of the medium transmitting it; in air at 20°C and at sea level, the speed of sound is 343 m/s or 1,236 km/h. When a body travels in a fluid with a speed equal to or higher than the speed of sound, it provokes shockwaves that release a great amount of sonic energy, a phenomenon called “sonic boom”.

This sonic boom, when caused by airships flying kilometers above the ground, can shake some houses’ windows. So how much damage would Captain’s sonic boom cause if generated in the middle of the street? In a best case scenario, bystanders would suffer temporary deafness and glass objects would be shattered, resulting in a high chance of getting sued (Gilliland, 2014).

Figure 7. Sonic boom forming as an aircraft breaks the sound barrier. Image extracted from Shutterstock (www. shutterstock.com).

Well, as destroying the pavement and bursting eardrums are usually villains’ jobs, let’s avoid that by giving our hero another (quite unrealistic) power: the capacity of not interacting with the air. Let’s assume that he can generate a field around his body that distorts physics so he doesn’t generate turbulence, drag or sonic booms.

With such not-very-realistic science, Captain can finally reach the speed of light, right? Not so fast. That is because, until now, I have been applying an implicit simplification: the path through which the Captain runs was considered a straight line. Even though this is an adequate model when dealing with “everyday” velocities, we must remember that Earth’s surface is not flat, but round, so one actually performs a curved trajectory when running straight forward. This makes a difference when we start to go superfast.

RUNNING AROUND THE GLOBE: THE GRAVITY OF THE PROBLEM

In order to follow a curve, a body needs a resulting force with a component perpendicular to the speed so that it alters the speed’s direction. This force is called centripetal force, given by:

where Fcent is the centripetal force needed for a body with mass m moving at a speed of magnitude V to follow a curve with a radius R (Fig. 8).

Figure 8. Centripetal force acting on a ball attached to a string being swung in circles. Image modified from Boys and Girls Science and Tech Club (https://bgsctechclub. wordpress.com/)

In most cases, as Earth’s radius is quite big and V is not too high, Fcent is low enough so one can ignore it without distorting the results, but as V increases, that‘s not the case anymore.

When I estimated the propelling force as being equal to the weight force, I assumed that FN = weight, so the resulting force in the vertical direction would be null. However, as we make a curve around the Earth, we need a resulting force equal to the centripetal force, so that the difference between the weight and normal force keep the body from leaving the planet’s surface.

As we are talking about planetary scale, let’s take a look at the expression for gravitational attraction, because, in reality, using g = 9.8 m/s² was another implicit simplification. According to Newton’s gravitational law:

where Fg is the gravitational force between two bodies; G is the universal gravitational constant, which was obtained through experiments to correlate Fg and the other physical quantities; M is the mass from one of the bodies, in our case, Earth’s; m is the other body’s mass, in our case, Captain’s; R is the distance between the two bodies’ centers of mass.

I will assume Earth’s shape to be a sphere (which is not exactly true, but this is not the worst approximation I’ve done so far) and that Captain’s height is negligible in face of Earth’s medium radius, so that R = 6,371 km.

When we study a problem in planetary scale, another issue arises: the Coriolis force, a fictitious force that appears when a body tries to move on a spinning frame of reference (such as the Earth) and the former’s speed is not parallel to the latter’s axis of rotation (Persson, 2005). Earth spins with an angular speed of 2π/day around an axis that passes through the planet from North to South. If the Captain stands still at the equatorial line, he performs a circular trajectory with a radius of 6,371 km at a speed of (2π/day) times 6,371 km. Standing at the poles, he just spins around himself, with zero speed. At each latitude between these extremes, he will have a different linear speed caused by rotation.

Now, let’s assume he is running at super speed and steps on the North Pole. At first, he would have a speed towards south only. If he goes on, however, he will arrive at points that rotate at a certain speed towards east, so two things may happen: either he accompanies Earth’s rotation, which means he needs an additional force to impel him to the east (it would “consume” part of the friction); or he keeps running south, and appears to be sliding west in relation to the ground.

Adding Coriolis force to the analysis would be way too complicated, but there is a way (literally) around this: if the Captain runs only over the equatorial line, the ground would always be at the same speed (ignoring mountains and other geographic features). In this case, the Coriolis force would no longer affect our hero’s speed direction to the sides (it becomes 100% vertical, like weight and centripetal forces), and we can build a simpler model using his speed referenced by Earth’s center by applying a correction to speed due to rotation.

So, back to the study of forces in the vertical direction, using V with reference to Earth’s center, we have:

Applying Newton’s second law, I can calculate Captain’s acceleration as:

This means that, as the speed increases, the acceleration decreases. As I assumed a constant radius R, G is constant by definition, and Earth’s mass doesn’t present significant change in a day, I can calculate that our hero’s top speed would be:

When achieving such a speed, any person would enter an orbit close to the ground. At this speed, the gravitational force keeps the body in a circular trajectory, keeping it from escaping into space, but not allowing enough interaction with the ground to have any normal force or friction force. Even if the Captain wore an extremely massive armor or super-adherent boots to increase his traction, when he reached 7,909 m/s relative to Earth’s center, there would be no more contact with the floor for him to accelerate any further.

Basically, the Captain would be floating a few centimeters above the ground, without touching it with his feet, and thus limiting his running speed.

If I consider that any point at the equatorial line moves at 465 m/s relative to Earth’s center, due to the planet’s rotation, and that the Captain can move at up to around 7,900 m/s, when seen by a reference on the ground he can run at 8,365 m/s when moving towards west, or 7,435 m/s when moving towards east. Therefore, at max speed, he could go around the planet in about 79 minutes and 40 seconds. Not instantaneous, but not bad either.

Still, as we have seen, his acceleration drops as his speed increases. Therefore, the faster he is, the harder it is for him to get even faster. With that said, how long would Captain Run take to reach top speed?

ACCELERATION: HOW FAST ONE GETS FASTER

Acceleration is the rate at which speed varies in time. As we have seen, a super runner has limitations to his acceleration, so he can’t reach the speed of sound in the blink of an eye. That, by the way, is one of the most common stunts performed by speedsters that contradicts the laws of physics, demanding explanations like time distortion.

For example, in Disney-Pixar’s The Incredibles, the young speedster Dash (Fig. 9) is presented as a boy who can run superfast, without mentioning time-space manipulation abilities. He doesn’t even ignore air resistance, for his hair is clearly dragged when he is running. Yet, Dash performs an impossible prank where he runs across a room full of people without anybody noticing, not even with the aid of a camera.

Figure 9. Dash, from The Incredibles. Image extracted from The Disney Wiki (http://disney.wikia.com).

In a rough estimation, he runs about 5 m from his seat to the front of the room, and 5 m back to his seat, all in the time between two frames captured by a hidden video camera. Even the cameras from the silent films period took images at a minimum rate of 16 frames per second (Wikipedia, 2017a), which means he had 0.0625 seconds to do it, at best. So, a minimum average speed of (2 x 5 m) / (0.0625 seconds) = 160 m/s was needed. What is the problem with that?

First of all, he was wearing common clothes at the time and not his special anti-air friction suit, so he would at least provoke a sudden blow of wind and a lot of noise, startling everybody in the room.

Second, if he had 0.0625 seconds to do all the work, he had even less time to accelerate and decelerate. When he got to the front of the room and turned back, he had to reverse accelerate at more than (2 x 160 m/s) / (0.0625 s) = 5,120 m/s², or 522 times the gravity acceleration. There is no way his regular shoes would stand so much friction with the ground without some damage or skidding occurring. Also, if he tried some maneuver like a wall-kick, he would probably poke a hole through the wall, not to mention the noise caused by the impact. Incredible indeed.

Right, you can’t run with infinite acceleration without destroying some objects in the way. Isn’t there another way? One “possible” solution to the acceleration limitation is to use jet propulsion: by discharging a stream of gas at high-speed backwards, one is propelled forward. One example is the hero in training Tenya Iida, from the manga/anime Boku no Hero Academia (Fig. 10), who has some sort of bio-organic engines in his calves. The story has yet to explain (if it ever will) how much thrust he gets from the expelled gas and how much comes from superfast leg motion. How he coordinates the propulsion with the variation of his legs’ positions while running is another mystery.

Figure 10. Tenya Iida from Boku no Hero Academia, using his powers. Image extracted from Boku no Hero Academia Wiki (http://bokunoheroacademia.wikia.com), excerpt from the manga.

Anyway, this can help at some level, but again there is the collateral damage issue: once the gas leaves the hero’s body or equipment, it will interact with the environment, possibly causing sonic booms or pushing unaware bystanders away, depending on the acceleration he is trying to achieve or the speed he is running at.

With that in mind, let’s go back to Captain Run dealing with his limited acceleration. As we have seen, the maximum acceleration he can achieve depends on his interaction with the ground, the gravity and the centripetal force needed to keep him on Earth’s surface. This can be expressed through the equation:

With all the constants known, the only variables left are the acceleration and the speed. Through numerical calculations I can estimate how these two quantities would vary if the Captain tried to achieve his maximum speed at the maximum available acceleration (Table 1).

Starting his movement standing at the equatorial line (rotating east at 465 m/s relative to Earth’s center, due to planetary rotation), running towards west, he would take 35 seconds and go through 6 km to reach the speed of sound relative to the ground.

Table 1. Variation in speed and acceleration as Captain Run speeds up.

He would take 47.4 seconds and 11 km to reach 465 m/s, or 0 m/s relative to Earth’s center. After 311 seconds and 469 km run, his speed would be 2,501 m/s relative to Earth’s center and his acceleration would have dropped by 10%.

To illustrate how his speed and acceleration evolve, let’s use these quantities in relative forms:

where V* is the relative speed (reference on the ground), a* is the relative acceleration, Ve is the equatorial line rotational speed and a0 is the maximum possible acceleration, when V=0. Plotting this on a graph in logarithmic time scale, we have Figure 11.

Figure 11. Variation in relative speed and acceleration as Captain Run speeds up.

One can see from Table 1 that, after 2,458 seconds (about 41 minutes), 16,000 km run (equivalent to almost 10 time zones), our hero would reach 99% of his top speed, and would have only 1% of his maximum acceleration still available. There is no highway long enough for this, but… moving on.

After 4,050 seconds, he would reach 99.99% of his max speed Vorb. Any irregularity on the ground, like a speedbump, might be used as a steppingstone to get one last push and hit the zero height orbit speed.

According to these estimations, he would take 5,353 seconds (about 89 minutes) to finish his trajectory around the planet and, from then on, would orbit close to the ground at 7.9 km/s (establishing an orbital period of 5,060 seconds or about 84.3 minutes). That is, if he didn’t collide with some object in his path, like a tree, building, mountain, etc. Given Earth’s topography, it doesn’t sound very likely.

COLLISION COURSE

Another problem thus becomes evident: how will the Captain dodge obstacles? As we have seen, when one’s speed increases, the interaction with the ground decreases. This means his acceleration is more limited, not only to make him go faster, but also to hit the brakes, or even to perform a curve and avoid collision.

Then, another question comes to mind: what is the speed limit if he intends to dodge from random obstacles? Sure, it depends on the nature and size of such an obstacle, but I can try to estimate it.

Let’s assume Captain is running in an open field, when he sees a small town. He decides entering the town is not a good idea, since he might hit innocent citizens, so he prefers to contour it.

The distance to the horizon line depends on a combination between the planet’s curvature and the height of the observer’s eyes above the ground (the altitude as well, but to simplify everything, let’s consider he is at sea level). Some estimates show that, for a point of view with heights varying from 1 to 2 meters above the ground, the distance to the horizon line varies from 3.57 to 5 kilometers (Wikipedia, 2017b).

To use round numbers, let’s say the distance to the horizon line is d = 4 km, and the town’s shape can be represented by a circle with a radius of rT = 1 km. When the Captain spots the town’s border, he immediately begins to perform a curve of radius r without decelerating, using all the friction force with the ground as centripetal force. Figure 12 shows this problem’s geometry.

In this case, the Captain would need to perform a curve of 12 km or less in radius. As we have shown, the faster he goes, the lesser friction force is available, and the harder it is to make a sharp turn.

Figure 12. Problem’s geometry: a speedster trying not to hit a small town.

If I combine the equations adopted for friction and centripetal force, what we have is:

In this case, V is the speed considering a reference in Earth’s center, while the speed that goes into the centripetal force equation is Vground because the curve is performed on the ground reference.

When the Captain runs towards west (the direction determines the relation between V and Vground), the maximum speed which still allows him to dodge the small town is Vground = 343 m/s (by coincidence, it is close to the speed of sound). Actually, as this speed is low in a planetary scale, the m∙V²/R component of the centrifugal force can be disregarded, and the result is about the same whichever direction the Captain is running.

As I estimated, our super runner runs about 6km to go from zero to 343 m/s. If he attempted to just brake instead of contouring the town, he would need about the same distance to decelerate, which means that he would not be able to stop in time to avoid the collision.

In other words, even if the Captain is theoretically capable of running at up to 7,900 m/s (close to Mach 23), if he goes beyond 343 m/s (about Mach 1), he would take the risk of being unable to deviate from large obstacles such as forests or a small town like the one presented in the example above. This could be even worse depending on visibility conditions or a slippery terrain.

BRACE YOURSELVES: IMPACT IS COMING

I have estimated that super runners should stay under the speed of sound in order to avoid accidental collisions.

Well, what if collision is the goal? For example, if a villain plans to conquer the city with a giant robot which Captain Run must destroy to save the day? How powerful would the impact be?

Assuming Captain is of average weight, let’s say 75 kg, and is running at top speed relative to the ground (8,365 m/s), he has a kinetic energy of 2.6 gigajoules (GJ). When measuring the energy of explosions, it is common to use a unit called ton of TNT, which is equal to 4.18 GJ. Therefore, a speedster running at top speed and punching, for example, a giant robot, would hit it with an energy equivalent to 620kg of TNT.

This may sound “weak”, but one must remember that all this energy would be applied to a surface the size of a human fist in a mostly unidirectional way, instead of spreading spherically like a bomb explosion usually does. Such destructive potential should not be neglected.

However, such an attack would be quite impractical. According to our estimations, Captain Run would need a 16,000 km long unimpeded straight road and take more than 40 minutes to reach his top speed, giving the villain plenty of time to just move the robot out of the collision course, quickly frustrating our hero’s plans.

BEYOND EARTH

So far, I have limited this study to the realm of an earthling super runner: a person on Earth whose powers involve high running speed on the ground, without the ability to distort time, space or gravity.

But wait: what if our hero went to a bigger planet, with higher mass and gravity acceleration, how fast could he go? Well, if one uses a similar math for Jupiter, the biggest planet in our solar system, it has M= 1.898 x 1027 kg and R= 1.42984 x 108 m (NASA, 2017), and the orbital speed at its surface would be 29.8 km/s, almost four times faster than Earth’s top speed. There is just one tiny issue: larger planets, such as Jupiter, tend to be gaseous, so it would be a little hard to run on them.

Well, how about giving Captain the power to run over any “surface”? Then, if he finds a big enough celestial body, he would be able to reach the speed of light, yes? Well, probably not.

The speed of light moving through vacuum (it changes depending on the medium it is moving through) is the theoretical limit for displacement rate in our universe, and equals about 300 thousand km/s (10,000 times the estimated maximum speed on Jupiter). The thing is, a celestial body whose surface orbital speed equals the speed of light would have a gravitational field so strong that any photon moving close to it would be unable to move away, getting trapped.

In other words, Captain Run would have to run on a black hole to reach the speed of light. As if resisting the enormous forces wouldn’t be tricky enough, he would also have to start his race at a lower speed, in which case his matter would be sucked and disintegrated by the black hole, ending his career in quite a tragic way.

Another way would involve building a planet-sized ring shaped track, and our hero running in its internal surface, like a roller coaster cart in a loop. The faster he goes, the higher the normal force due to centrifugal effects, increasing the friction force available for acceleration.

But this increasing force takes its toll. At some point before hitting the speed of light, the force put on the track would be comparable to those occurring on the surface of a black hole, since Captain Run has an unneglectable mass. At that point, the atomic interactions in either the track’s material or Captain’s body would not bear the stress anymore, and something would collapse in a very destructive accident.

CONCLUSION

When presenting speedsters’ stories, it is easy to make mistakes concerning physics (or simply ignore physics entirely), most of them related to the limits of acceleration.

Considering a super-runner on Earth, if there was a highway completing a loop around the whole planet following the equatorial line, our hero would be able to reach a maximum speed of 7.9 km/s relative to Earth’s center (up to 8.4 km/s relative to the ground, depending on the direction he is running). From then on, due to gravitational and centrifugal effects, he would be unable to accelerate any further. Even with quite unrealistic capabilities, such as ignoring atmospheric interactions and biophysical limitations, our hero can barely get to 0.01% of a photon’s speed.

Still considering Earth’s limitations, the super-runner could punch an immobile target with energy equivalent to 620 kg of TNT, supposing he had enough time and space to prepare his attack and his body being able to withstand the impact.

However, for safety’s sake, it would be inappropriate to go beyond 343 m/s, otherwise accidental collisions might cause undesirable damage to people, property, fauna and/or flora.

In order to reach the dream of light speed, one could try to use more massive celestial bodies, or build a planet-sized ring track. Still, unless one had superpowers and materials able to withstand the forces found on a black hole’s surface, disintegration would come long before the speed of light.

In conclusion, unless we include powers to further distort time-space or other physical laws around one’s body, even without considering relativistic effects, we can say it is impossible for a hero to run at the speed of light.

REFERENCES

Carwardine, M. (2008). Natural History Museum – Animal Records. Sterling, New York.

Engineering ToolBox, The. (2017) Friction and Friction Coefficients. Available from: http:// www.engineeringtoolbox.com/friction-coefficie nts-d_778.html (Date of access: 20/05/2017).

German Athletics Federation. (2009) Biomechanical analyses of selected events at the 12th IAAF World Championship in Athletics, Berlin 15–23 August 2009. Available from: https://www.iaaf.org/about-iaaf/documents/re search (Date of access: 20/05/2017).

Gilliland, J. (2014) Flash’s liability for breaking windows. The Legal Geeks. Available from: http://thelegalgeeks.com/2014/11/20/flashs-lia bility-for-breaking-windows/ (Date of access: 20/05/2017).

NASA, National Aeronautics and Space Administration. (2017) Planetary fact sheet. Available from: http://nssdc.gsfc.nasa.gov/plane tary/factsheet/ (Date of access: 21/05/2017).

Nave, C.R. (2012) HyperPhysics. Available from: http://hyperphysics.phy-astr.gsu.edu/hbase/ind ex.html (Date of access: 20/05/2017).

Persson, A.O. (2005) The Coriolis Effect: four centuries of conflict between common sense and mathematics. Part I: A history to 1885. History of Meteorology 2: 1–24.

Wikipedia. (2017a) Frame rate. Available from: https://en.wikipedia.org/wiki/Frame_rate (Date of access: 20/05/2017).

Wikipedia. (2017b) Horizon. Available from: https://en.wikipedia.org/wiki/Horizon (Date of access: 20/05/2017).


ABOUT THE AUTHOR

Gabriel understands that, if physics were to be taken too seriously, and every interaction had to be carefully calculated, there would be a terrible shortage of stories about supers available to be enjoyed. Nevertheless, he will continue in his journey to unveil possible and impossible explanations for the mysteries of the multiverse based on the science of our boring real world and, maybe one day, find a way to become an actual supervill… hero. Superhero. Of course.


Check other articles from this volume

Is the Great Attractor a Tengen Toppa Gurren Lagann?

João V. Tomotani

Universidade de São Paulo; São Paulo, Brazil.

Email: t.jvitor (at) gmail (dot) com

Download PDF

Space is a big place. Quite big, actually. Huge may be a more appropriate adjective. So huge that it received the title of “final frontier” by a famous television series, since you are not really supposed to traverse it. (The question remains, though: for it to be a frontier, isn’t it supposed to have something on both sides?) The vastness of space is both mysterious and fascinating. Man, in his ceaseless curiosity and desire for knowledge (and also the need to understand the universe around him to avoid the discomfort of death by starvation or cold), developed the science known today as Astronomy, as an attempt to unveil the mysteries of the universe. Since space is such a humongous place, one can expect it is full of mysteries. Enters the Great Attractor.

THE GREAT ATTRACTOR

The Great Attractor is a gravitational anomaly, a massive (and controversial) one. It is indirectly “observable” by its effect on the motion of galaxies, and its presence, mass and position were estimated based on the peculiar velocity of the Local Group, the galaxy group that includes the Milky Way (Kocevski & Ebeling, 2006). A nice video explaining it was made by the SciShow Space (www.youtube .com/watch?v=N9qeOhJ9dbg). It is also a quite funny name with the potential for several jokes (Fig. 1 is not one of them, but it could be).

Great Attractor Figure 01

Figure 1. “Dark Flow” (XKCD, 2008; available from https://xkcd.com/502/). Note that the (rather controversial) Dark Flow phenomenon is not the same as the Great Attractor. I included this strip, though, because it is funny.

The observation of the Great Attractor is difficult when restricted to the length of optical waves, due to the presence of the Milky Way. The plane of the Milky Way outshines (due to its stars) and obscures (due to the dust) many of the objects behind it (NASA, 2013). This unobservable space is called the Zone of Avoidance (ZOA; a very neat name by the way), or “Zone of few Nebulae” as initially proposed by Proctor in 1878 (Kraan-Korteweg, 2000). Not to be confused with the Phantom Zone, the prison dimension to where the people of Krypton sent their prisoners.

The ZOA was “avoided” by astronomers because of the difficulties in analyzing the obscured galaxies known there (Kraan-Korteweg, 2000). Figure 2 shows a picture from the NASA/ESA Hubble Space Telescope taken in 2013 focusing on the Great Attractor. The region behind the center of the Milky Way, where the dust is thickest, is very difficult to observe at optical wavelengths.

Figure 2. “Hubble Focuses on ‘the Great Attractor’”. This field covers part of the Norma Cluster as well as a dense area of the Milky Way. The Norma Cluster is the closest massive galaxy cluster to the Milky Way. The huge mass concentrated in this area and the consequent gravitational attraction makes this region of space known to the astronomers as the Great Attractor. Picture retrieved from http://www.nasa.gov/mission_pages/hubble/science/great-attractor.html (NASA, 2013).

In this study, I shall propose a slightly unusual hypothesis to what could be the Great Attractor. Could this gravity anomaly be an outcome of the presence of a very big robot?


Box 1. The Local Group, Clusters, Superclusters and other ginormous things

The Great Attractor’s location is estimated to be at a distance of somewhere between 150 and 250 million light-years from the Milky Way (something between 1.4 x 1024 and 2.4 x 1024 meters and quite far indeed). But both the Great Attractor and our own Milky Way belong to the same structure, known as the Laniakea Supercluster (“Laniakea” means “immense heaven” in Hawaiian). The Milky Way resides in the outskirts of this supercluster, whose diameter is 500 million light-years, while the Great Attractor resides closer to its center. A supercluster is a (very) large group of smaller galaxy clusters or galaxy groups (like our own Local Group) and is among the largest known structures of the cosmos. The Laniakea Supercluster was discovered in 2014, encompasses 100,000 galaxies, contains the mass of one hundred million billion Suns, and consists of four subparts, previously known as separate superclusters (The Daily Galaxy, 2015).


THE TENGEN TOPPA GURREN LAGANN

Japan has a peculiar relationship with robots, which have an important and established position in the country’s pop culture. The word mecha (abbreviation of “mechanical”) now refers to a whole genre of movies, manga, anime and live-action series (the tokusatsu) involving mechanical objects (vehicles, robots etc.), autonomous or manned, which quickly became popular in Japan and abroad.

While the first robot appearance in sci-fi culture is usually attributed to the tripods of H.G. Wells in 1897, the first appearance of a giant humanoid robot is attributed to Tetsujin 28-Go, a manga from 1956 by Mitsuteru Yokoyama. However, perhaps the greatest symbol of the mecha genre, and Japanese culture in general, is from a 1952 manga by Osamu Tezuka: the boy-robot Tetsuwan Atom (Astro Boy in the West). This manga was released in post-war Japan, a moment of drastic changes in culture, industry and society, where science and technology promised economic growth and transformation of social structures (Hikawa, 2013). Astro Boy was adapted into anime in the 1960s and quickly made its way to the West. Other works of the mecha genre, particularly those with giant robots (e.g., Gundam, Mazinger Z, Macross, Neon Genesis Evangelion) influenced many western works like the Transformers cartoon, the Power Rangers TV series and the movie Pacific Rim.

Giant fighting robots are already a reality, by the way. Groups of American and Japanese engineers, in their desire to hasten Judgment Day, built giant robots of a few tons, capable of firing missiles and engaging in heavy fighting (Fig. 3).

Great Attractor Figure 03

Figure 3. The American (Megabots Inc.) and Japanese, named Kurata, giant robots (Suidobashi Heavy Industries). Source: http://www.popularairsoft.com/megabot-challenges-japanese-kuratas-giant-robot-duel.

What does this entire story about Japanese robots have to do with the massive gravity anomaly from the introduction, you ask? Well, a 2007 Japanese animation called Tengen Toppa Gurren Lagann decided to explore how “giant” a giant robot could be.

The Tengen Toppa Gurren Lagann (henceforth TTGL; Fig. 4) is the largest mecha shown in the anime. According to the official series guide, the TTGL is about 10 million light-years tall (Gurren Lagann Wiki, 2016). This is somewhere around 9.46 x 1022 meters, or about 100 times the diameter of the Milky Way. It is a fairly giant robot.

Great Attractor Figure 04

Figure 4. The Tengen Toppa Gurren Lagann, a quite big mecha. Official artwork from the series, available from Gurren Lagann Wiki.

The existence of a robot 10 million light-years tall is very questionable for some practical reasons. The usefulness of a robot of this size is also doubtful. How could a robot of this size engage in combat (or do anything, actually)? Since nothing restricted by the physics of our universe can move faster than light, the act of throwing a single punch would take a few million years. It would take a few million years more for the pilot of this robot to find whether the punch hit the target or not. It would be a long fight. These practical questions will henceforth be disregarded here. The question posed is only one: could the Great Attractor be a consequence of the existence of the TTGL?


Box 2. The Super TTGL

In the follow-up movie, a version of the robot entitled Super Tengen Toppa Gurren Lagann was introduced because, why not? The Super TTGL is 52.8 billion light-years tall according to the official guide book, making it about 58% the size of the universe. We shall not consider this robot.


SO… IS IT POSSIBLE?

Well, not exactly.

The first thing I need to do is estimating what is the mass of a robot of this size. This is not that simple, since humanity has not yet been able to build something so gargantuan. A rather crude way to do this is by applying the square-cube law (see Box 3) based on smaller robots with known mass. Since we have the height and mass of the Kurata Japanese robot (4 meters, 4.5 tons; Wikipedia, 2016a), we can use it for our estimate.


Box 3. The square-cube law

The square-cube law was proposed by Galileo Galilei (1564–1642), who was apparently the first to notice that the volume of a particular object or being increased in cubic proportion to an increase in their linear dimensions, while the strength increases in square proportion (cross section of the muscles). A review of this concept was conducted by Froese (2006).

The square-cube law has a number of practical applications, including studies in Biology and civil engineering, besides being a very interesting concept to be assessed in pop culture. It is not uncommon that, for super heroes, strength and size are treated almost synonymously. Heroes and villains (e.g., the Hulk, Giganta, and Apache Chief), grow in size constantly for fighting or performing feats of strength. In practice, achieving an absurd size is not practical, since the square-cube law suggests that the weight of the heroes grow much faster than their strength (that would mean they would be unable to even stand up). This law is unfortunately a significant impediment to building colossal robots.

Interestingly, the spell enlarge person from the tabletop RPG Dungeons & Dragons agrees with half of the law (Cook et al., 2003). To double in size, the target of the spell has its weight multiplied by eight, in accordance with the “cube law”. However, the target receives a fixed Strength modifier of +2, instead of having an increase proportional to his/her base Strength value, which would make more sense.


Applying the square-cube law to estimate the mass of the TTGL, we get the results shown on Table 1. In addition to the mass of the TTGL, I estimated the mass of other fictitious robots. This comparison was made to assess whether this estimate would be appropriate, given that several of these giant robots have established weights in official guides and other “literature”.

The robots chosen for comparison were: the ATM-09-ST VOTOM (Vertical One-man Tank for Offense and Maneuvers) from the anime Armored Trooper Votoms (1983); the Gundam RX-78-2 from the anime Mobile Suit Gundam (1979); the T800 from the movie Terminator (1984; the height was defined as that of the actor Arnold Schwarzenegger; the weight of a T800 is unknown but it is thought to not exceed 1 ton, since the robot take actions such as riding a motorcycle); the autobot Optimus Prime from the movie Transformers (2007); the jaeger Gipsy Danger from the movie Pacific Rim (2013); and the real robot from Megabots Inc. mentioned above (the weight of the Megabot is known; the estimate is only for comparison purposes). Moreover, Table 1 has also the Sun and the Milky Way for comparison. We can see that, for larger robots (Optimus Prime and bigger), the estimated weight by the square-cube law becomes much greater than that given by the official guides. This lighter weights can be partially “explained” for some robots by using unknown material: Optimus Prime is made of Cybertron materials and Gundams from Luna Titanium or Gundarium. In the case of a Jaeger, I can only assume that the futuristic technology of Pacific Rim was able to develop lightweight robots to that extent (or that the movie producers just did not care).

Table 1. Height and weight of giant robots and other things. The “Estimate” column is the weight estimated using the square-cube law (having Kurata’s weight and height as basis). The “Official” column is the official (or actual) weight.

Great Attractor Table 01

The mass of the Great Attractor is estimated to be about 1.000 trillion times the mass of the Sun (Koberlein, 2014). This is equivalent to circa 2 x 1042 tons, well below the estimated mass of a TTGL of 6 x 1067 tons. Just from this difference, it appears that the Great Attractor could not be a TTGL, or the gravitational attraction would be many times stronger than the one perceived (even considering that the estimated weight is wrong by a few orders of magnitude). Moreover, this is not the only problem. Such a monstrous mass distributed in such a small space would probably collapse and become a black hole.

The Schwarzschild radius (or gravitational radius) is a concept that expresses what should be the radius of a sphere such that, if the mass of the entire object was within this sphere, the escape velocity of the surface of this sphere would be equal to the speed of light (i.e., you would not be able to escape its gravitational field). When the remains of a star, for example, collapse so that its size is below this radius, the light cannot escape its gravitational field and the object is no longer visible, becoming a black hole (Beiser, 2003). The Schwarzschild radius can be calculated by:

Great Attractor Equation 01

where: rs is the Schwarzschild radius; G is the gravitational constant; M is the mass of the object; and c is the speed of light in vacuum.

An object whose real radius is smaller than its Schwarzschild radius is called a black hole. Calculating the Schwarzschild radius for the Milky Way, the Sun, and the TTGL gives us Table 2.

Table 2. Comparison of the Schwarzschild radii of Sun, Milky Way and TTGL, with their real radii. The real radius of the TTGL is considered half its height.

Great Attractor Table 02

From Table 2, we can see that in the case of the TTGL, the Schwarzschild radius is many times larger than its actual size (even considering that the square-cube law has overestimated the mass of the robot by some orders of magnitude). This means that the robot, if existed, would become a giant supermassive black hole.

Incidentally, the estimated mass of the TTGL is also several times greater than the estimated mass of the observable universe (considering only ordinary matter), that is 1050 tons. Thus, it is unlikely that a robot this big exists.

SO… IS IT IMPOSSIBLE?

Well, not necessarily.

As shown by Table 1, many other robots in fiction do not follow the square-cube law to the letter. Some reasons may be proposed: they are made of fictional materials (supposedly not yet discovered by man), such as Gundarium or some Cybertron material; they were built by advanced and/or alien technology; or for any magical/supernatural reasons.

The same can be valid for the TTGL, in a way. The robot is made of “a mass of continuously materialized Spiral Power”, according to the anime lore (Gurren Lagann Wiki, 2016). This Spiral Power (Fig. 5) is presented in the anime as a physical model, the connection between living beings and the universe (besides being a religion of sorts). Such definition could make us treat the structure of the TTGL as strictly “magical”, discarding any physical interpretation of its existence. Nevertheless, the robot is composed of “mass”, so it has a gravitational field.

Great Attractor Figure 05

Figure 5. The protagonist of the Tengen Toppa Gurren Lagann anime overflowing with Spiral Power. Screenshot from the anime; image taken from Gurren Lagann Wiki.

As such, I propose a second analysis for the TTGL. Knowing the estimated mass of the Great Attractor as 2 x 1042 tons, I assume that to be the mass of the TTGL. Calculating the Schwarzschild radius for that mass, we have Table 3.

Table 3. Comparison of the Schwarzschild radius of the TTGL with its real radius, considering that the TTGL has the same mass as the Great Attractor.

Great Attractor Table 03

Thus, a mecha of this size and weight might not collapse into a black hole, also having a “Schwartschild radius / real radius” ratio not so different from those of the Sun and Milky Way.

SO… IT IS POSSIBLE!

Well, not really.

You see, early this year, scientists managed to identify a whole bunch of galaxies hidden in the Zone of Avoidance (Staveley-Smith et al., 2016). These researchers used a multibeam receiver on a 64-m Parkes radio telescope and uncovered 883 galaxies, many of which were never seen before.

Therefore, it is more likely that the gravity anomaly detected is because of this concentration of galaxies rather than due to the existence of a giant robot 10 million light-years tall. But you never know…

Great Attractor Figure 06

Figure 6. You never know… Image adapted from the video “Laniakea: our home supercluster”, by Nature Video; available from: https://www.youtube.com/watch?v=rENyyRwxpHo.


Box 4. The Ring (1994)

In his 1994 novel “The Ring”, fourth book of the “Xeelee Sequence”, British hard science fiction writer Stephen Baxter proposed yet another interesting hypothesis for the origin of the Great Attractor. In his novel, the alien race Xeelee was losing a war against beings of dark matter, and retreated through an escape hatch. This escape hatch (the Ring from the title) was made of something too small to be seen by the naked eye, a cosmic string, a flaw in space time. A single inch of this “material” would weight ten million billion tons on the surface of the Earth. The ring had a mass of several galactic clusters and measured 300 light-years across, 10 million light-years in diameter. In Baxter’s book, it is discovered that this immense construction is the reason behind the Great Attractor (Orbital Vector, 2007).


ACKNOWLEDGEMENTS

I am grateful to Henrique M. Soares for helping to formulate this study’s question and developing the analysis; and to Gabriel K. Kiyohara for comments that helped putting some things in perspective (pun intended).


REFERENCES

Beiser, A. (2003) Concepts of Modern Physics. 6th ed. McGraw-Hill, New York.

Blain, L. (2015) June 2016: America and Japan to face off in giant robot combat. Available from: http://www.gizmag.com/kuratas-sui dobashi-megabots-giant-robot-battle-20 16 -gundams/38352/ (Date of access: 13/ May/2016).

Cook, M.; Tweet, J.; Williams, S. (2003) Dungeons & Dragons Player’s Handbook: Core Rulebook 1, v. 3.5. Wizards of the Coast, Renton.

Daily Galaxy, The. (2015) The Great Attractor “exists within an Immense Supercluster of 100,000 Galaxies”. Available from:  http://www.dailygalaxy.com/my_weblog/2015/03/the-great-attractor-exists-within-an -immense-supercluster-of-100000-galaxies. html (Date of access: 13/May/ 2016).

Frose, R. (2006) Cube law, condition factor and weight-length relationships: history, meta-analysis and recommendations. Journal of Applied Ichthyology 22(4): 241–253.

Gurren Lagann Wiki. (2016) Tengen Toppa Gurren Lagann. Available from: http://gurrenlagann.wikia.com/wiki/Tengen_Toppa_Gurren_Lagann (Date of access: 13/May/ 2016).

Gundam Wiki. (2016) RX-78-2. Available from: http://gundam.wikia.com/wiki/RX-78-2_Gu ndam  (Date of access: 13/May/ 2016).

Hikawa, R. (2013) Japanese Animation Guide: The History of Robot Anime. Japan’s Agency for Cultural Affairs.

Kraan-Korteweg, R.C. (2000) Galaxies behind the Milky Way and the Great Attractor. Lecture Notes in Physics 556: 301–344.

Koberlein, B. (2014) What is the Great Attractor? Universe Today. Available from: http://www.universetoday.com/113150/what-is-the-great-attractor/ (Date of access: 13/May/ 2016).

Kocevski, D.D. & Ebeling, H. (2006) On the origin of the Local Group’s peculiar velocity. Astrophysics Journal 645: 1043–1053.

MAHQ. (2016) ATM-09-ST Scopedog. MAHQ Mecha and Anime Headquarters. Available from: http://www.mahq.net/mecha/votom s/atvotoms/atm-09-st.htm (Date of access: 13/May/ 2016).

NASA. (2013) Hubble focuses on “the Great Attractor”. Available from: http://www.na sa.gov/mission_pages/hubble/science/great-attractor.html (Date of access: 13/May/ 2016).

Orbital Vector. (2007) Xeelee Ring. Available from: http://www.orbitalvector.com/Mega structures/XEELEE%20RING.htm (Date of access: 16/May/ 2016).

Pacific Rim Wiki. (2016) Gipsy Danger. Available from: http://pacificrim.wikia.com/ wiki/Gipsy_Danger_(Jaeger) (Date of access: 13/May/ 2016).

Staveley-Smith, L.; Kraan-Korteweg, R.C.; Schröder, A.C.; Henning, P.A.; Koribalski, B.S.; Stewart, I.M.; Heald, G. (2016) The Parkes HI Zone of Avoidance survey. The Astronomical Journal 151(3): 1–42.

Transformers Wiki. (2016) Optimus Prime. http://transformers.wikia.com/wiki/Optimus_Prime_(Movie) (Date of access: 13/May/ 2016).

Wikipedia. (2016a) Kuratas. Available from: https://en.wikipedia.org/wiki/Kuratas (Date of access: 13/May/ 2016).

Wikipedia. (2016b) Arnold Schwarzenegger. Available from: https://en.wikipedia.org/ wiki/Arnold_Schwarzenegger (Date of access: 13/May/ 2016).

Wikipedia. (2016c) Sun. Available from: https://en.wikipedia.org/wiki/Sun (Date of access: 13/May/ 2016).

Wikipedia. (2016d) Milky Way. Available from: https://en.wikipedia.org/wiki/Milky_Way (Date of access: 13/May/ 2016).


Check other articles from this volume

The Force: a new candidate for dark matter

Christian Vogt

Independent researcher. Hannover, Germany.

Email: christian (at) jcvogt (dot) de

Download PDF

Only about 5% of the total mass of the universe consists of ordinary matter (mostly protons, neutrons and electrons, which form atoms). The missing 95% divide into dark matter (ca. 25%) and dark energy (ca. 70%) (Planck Collaboration, 2013) – see Figure 1. In this study, I focus on the former one.

Figure1

Figure 1. Approximated distribution of matter and energy within the universe.

The existence of dark matter is indicated by the effect of gravitational lenses and the orbital velocities in galaxy clusters as well as galaxy rotation curves (for more information see Carroll, 2007). Long story short, to explain some astronomic observations, there is mass missing, which is not visible to us. This missing mass is a result from the presence of dark matter. One candidate for dark matter are Weakly Interaction Massive Particles (so called WIMPs), which may be supersymmetric particles (Freund, 1988). However, experiments such as those of the Large Hadron Collider have not proven the existence of supersymmetry yet. I propose a different candidate for dark matter here.

Galaxies with rotation curves influenced by dark matter are usually far, far away. Due to the limited speed of light, the events in these galaxies we observe now on earth happened a long time ago.

Therefore, to find a new candidate for dark matter, let’s have a look at a place a long time ago, in a galaxy far, far away!

DARK MATTER MIDI-CHLORIANS

This far, far away galaxy, where the plot of Star Wars takes place, is characterized by slightly different physics compared to our own galaxy. The differences in physics may be a result of the presence of dark matter.

What are those differences? As long as they are not jumping into hyperspace and flying faster than light, space ships in Star Wars travel very slowly through space, similar to ships at sea (capital ships such as Star Destroyers) or planes (X-Wings or TIE-Fighters). They seem to be restricted by some medium, limiting their maximum speed. In addition, their engines emit sound waves, which propagate through the apparent vacuum, making, for instance, the characteristic noises of turbolasers and TIEs flying by (Lucasfilm, 1977). The corresponding sound waves have to travel through some medium filling the vacuum. This medium is our candidate for dark matter!  In order to reveal its nature, let’s look at an additional characteristic of the Star Wars galaxy: the Force. The Force is an overall present force field in the galaxy, but it interacts only strongly with other atoms when used by a Jedi.

According to Lucasfilm (1999), the carriers of the Force field are particles called Midi-chlorians [1]. Obi-Wan Kenobi states: “The Force is what gives a Jedi his power. It’s an energy field created by all living things. It surrounds us and penetrates us.” Therefore, the Force seems to interact weakly enough to “penetrate us”, but interacts strongly with certain live beings (Jedi). Further, he says that “[it] binds the galaxy together”. The Force field has to interact gravitationally to achieve this, and, hence, its carrier particles [2] need to have mass. Like other force carriers (electrons, W- and Z-Bosons, Gluons for electromagnetic, weak and strong nuclear interactions, respectively), Midi-chlorians should be particles with integer spin (Bosons). A Feynam diagram of a Force interaction is illustrated in Figure 2.

Figure2

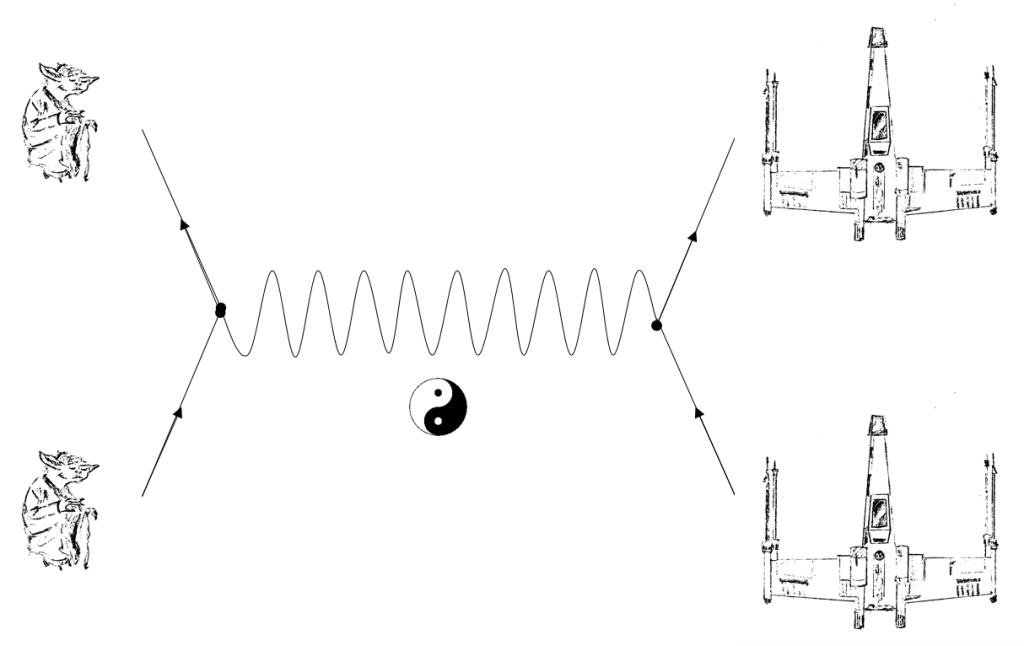

Figure 2. Jedi master Yoda levitating an X-Wing starfigher by the Force as seen in a Feynman diagram. Yoda exchanges Midi-chlorian particles with the X-Wing to lift it.

With the overall present, massive, but mostly weak interacting Midi-chlorians, we have our candidate for a dark matter particle. Figure 3 shows the particles of an extended Standard Model including the Force and its Midi-chlorian carrier particle.

Figure3 [NEW]

Figure 3. Extended Standard Model including the Force. The yin-yang symbol represents two “flavors” of the Midi-chlorian particle: light side and dark side.

MIDI-CHLORIAN MASS AND PARTICLE DENSITY

Assuming the Star Wars galaxy is quite similar to our own Milky Way, I can estimate the mass density of dark matter in this far, far away place. The ordinary mass of the Milky Way is mmw = 4×1011 times the mass of our sun. Dark matter should be approximately five times this mass (25% compared to 5%).

The galaxy is approximate by a disk with a radius of rmw = 105 ly, its thickness is dmw = 3×103 ly (neglecting the bulge at the center). As a consequence, the mass density ρdm of dark matter in the Star Wars galaxy is:

ρdm ≈ 5mmw x (∏ rmw2 dmw)-1 ≈ 5×10-20 kg m-3

As TIEs and X-Wings sound very similar in space and in a planet’s atmosphere (Lucasfilm, 1977; Lucasfilm Animation, 2014), I assume a similar particle density of dark matter Midi-chlorians in space and air in the lower planet’s atmosphere of ρMidi = 2.5×1013 m-3.

Comparing particle density and mass density allows me to calculate the mass of one single Midi-chlorian: mMidi = 2×10-33 kg, which corresponds to about 1 keV.

That is about factor 500 below the mass of an electron. Midi-chlorians seems to be very, very light weighted – which we would expect for a particle of the overall present invisible field of the Force.

DARTH VADER’S MIGHT

What does the parameters calculated above further tells us?

Let’s take into account the fact that Anakin Skywalker (when found by Qui-Gon Jinn), who became later the mighty and evil Darth Vader, has a concentration of 20,000 Midi-chlorians per cell of his body (Lucasfilm, 1999) – the highest measured value so far. Unfortunately, we have no information on the measurement’s method, which would allow to verify the theory of dark matter Midi-chlorians on Earth.

With 1014 cells in a human body, Anakin’s body contains 2×1018 Midi-chlorians. Anakin, or at least Darth Vader, is a big guy. I assume his value to be equal 0.1 m-3 (neglecting in this approximation, however, his loss of limbs after his fight with Obi-Wan Kenobi). This yields a density of 2×1019 Midi-chlorians per m3 for this user of the Force. That means Anakin’s Midi-chlorian density is larger than the galactic background by six orders of magnitude. This seems to be a reasonable value for the mightiest Sith Lord in history.

CONCLUSION

I proposed Midi-chlorians from the Star Wars galaxy as reasonable candidates for a dark matter particle, giving their mass as 2×10-33 kg (about 1 keV), and showing that Darth Vader has about one million times Force in him than the galactic background. To the best of our knowledge, no Jedi inhabits our Earth and our satellites and probes make no sound in space. As an unfortunate turn of events, we seem to live in a very Force-poor part of the universe – making it very hard to solve the riddle of dark matter on this planet.

Future studies will focus on dark energy and its relation to the dark side. In addition, it will be studied whether there is a yet unknown quantum number defining light side and dark side Midi-chlorians and their spontaneous symmetry breaking near Jedi and Sith.

ACKNOWLEDGMENTS

Judith Vogt provided advice and a figure. Thanks also to Klaus Erkens und Marc Wolter for useful comments.

REFERENCES

Ade, P.A.R. & Aghanim, N. & Armitage-Caplan, C. (Planck Collaboration) et al. (2013) Planck 2013 results I Overview of products and scientific results – Table 9. Astronomy and Astrophysic 1303: 5062.

Corroll, S. (2007) Dark Matter, Dark Energy: The Dark Side of the Universe. Guidebook, Part 2. The Teaching Company, Chantilly.

Freund, P. (1988) Introduction to Super-symmetry. University Press, Cambridge.

Lucasfilm. (1977) Star Wars Episode IV: A New Hope. 20th Century Fox, United States.

Lucasfilm. (1999) Star Wars Episode I: The Phantom Menace. 20th Century Fox, United States.

Lucasfilm Animation. (2014) Star Wars Rebels. Disney–ABC Domestic Television, United States.


[1] As a fan of the old movies, it is quite hard for me to mention this topic. However, I will sacrifice true fandom for the sake of science.

[2] The Midi-chlorians are also referred to as lifeforms, living in creatures. However, Jedi use the force also on non-living objects. Therefore, the Force is not limited to interactions between microscopic lifeforms and has to be a fundamental nuclear interaction. Even if there actually is a microscopic lifeform with strong connection to the Force field or generation behavior for Force, I use the term “Midi-chlorian” here for the force carrier particle of the Force.


Check other articles from this volume
